LGX450 Biomass Pellet Machine

Short Description:

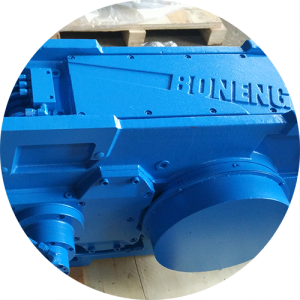

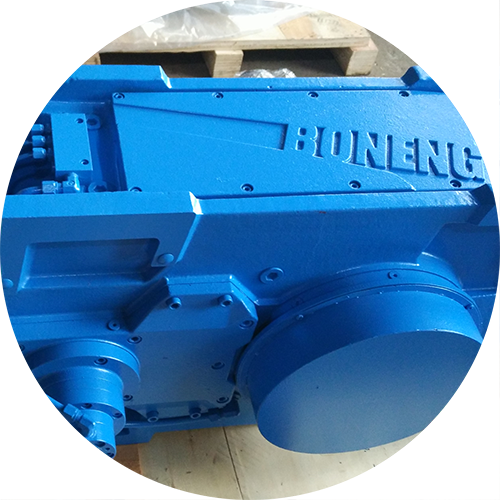

Entry-level commercial product, Vertical structure & ring die, Boneng/Tongli main reducer, 800-1000kg/h capacity.


Product Detail

Product Tags

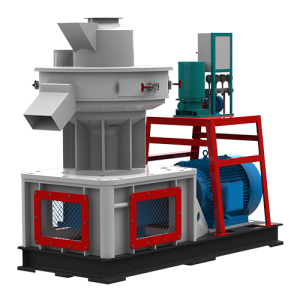

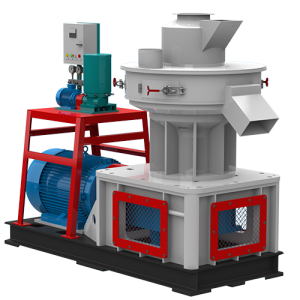

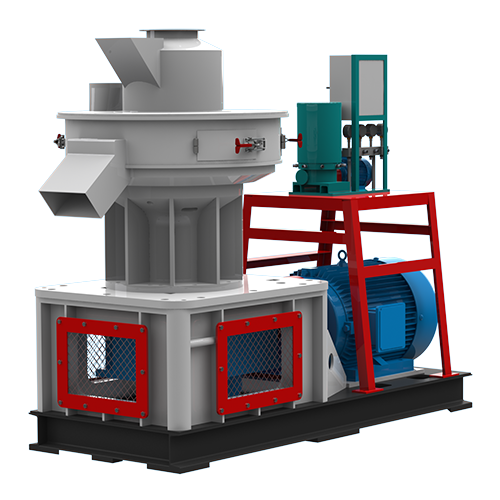

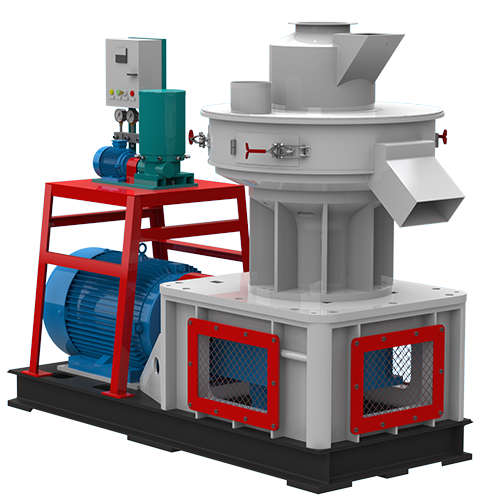

LGX-450 vertical ring die biomass wood pellet making machine is entry-level commercial product for small wood pellet fuel making factory,and self-use customer.

The whole set LGX450 wood pellet machine includes 5 parts,they are

1.Screw Feeder

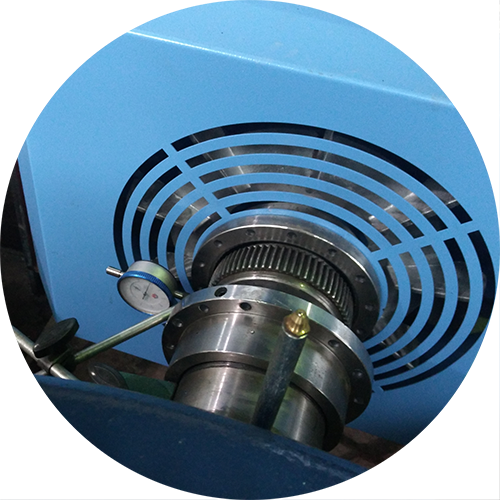

2.Main Pellet Machine

3.Auto Lubrication System

4.Dust Collector

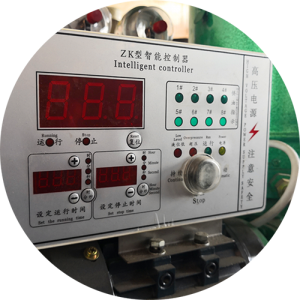

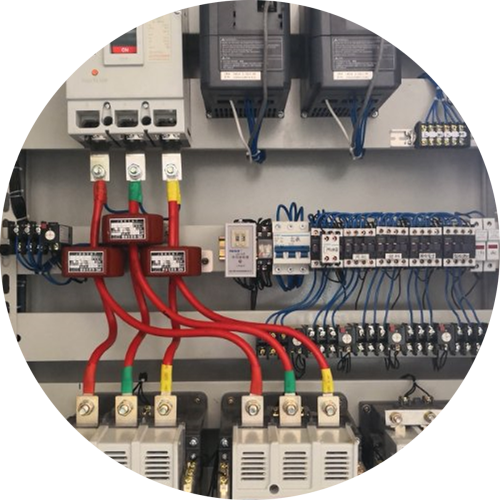

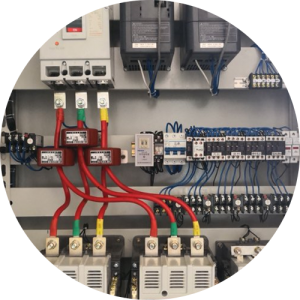

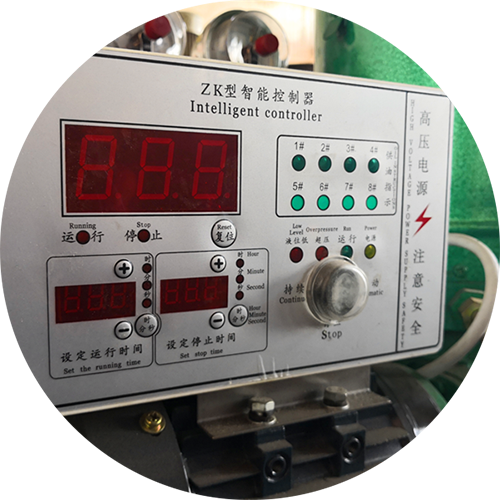

5.Control Panel.

Model

LGX450
Power (kw)

Main machine

55

Pellet pusher

Spindle  drive

Lubrication pump

0.37
Rotation speed (r/min) 1450
Voltage (v) 380 / customized ,3phase
Pellet size (mm) 4-12
Machine weight ( t ) 2.9
External dimension (mm) 2270*970*1895
Ring die inner diameter (mm) 450
Capacity (t/h) 0.8-1
https://www.shindery.com/a-1-lgx450.html
2

Ring die wood pellet machine
